For YOU, the maintainer, the “Red Dot® “ Timing Mark Projector. Designed to magnetically clip to the 15.5 in. starter ring of Lycoming engines. The projector, as aligned with the timing marks off the AFT surface of the starter ring can then be brought around by prop bumps and projected onto the CL of the engine case. Conversely, the “red dot” of the engine CL can be used in reverse to determine where engine timing is for a particular magneto. Used during magneto timing operations, this provides a visual and repeatable determination of timing mark alignment. Designed and distributed in the USA by Swearingen 3D works of Marion IOWA, the "Red Dot™” Timing Mark Projector is tested and now in first use by our A&P staff at C17. Made to order, it is now prepared just for you and your bird.

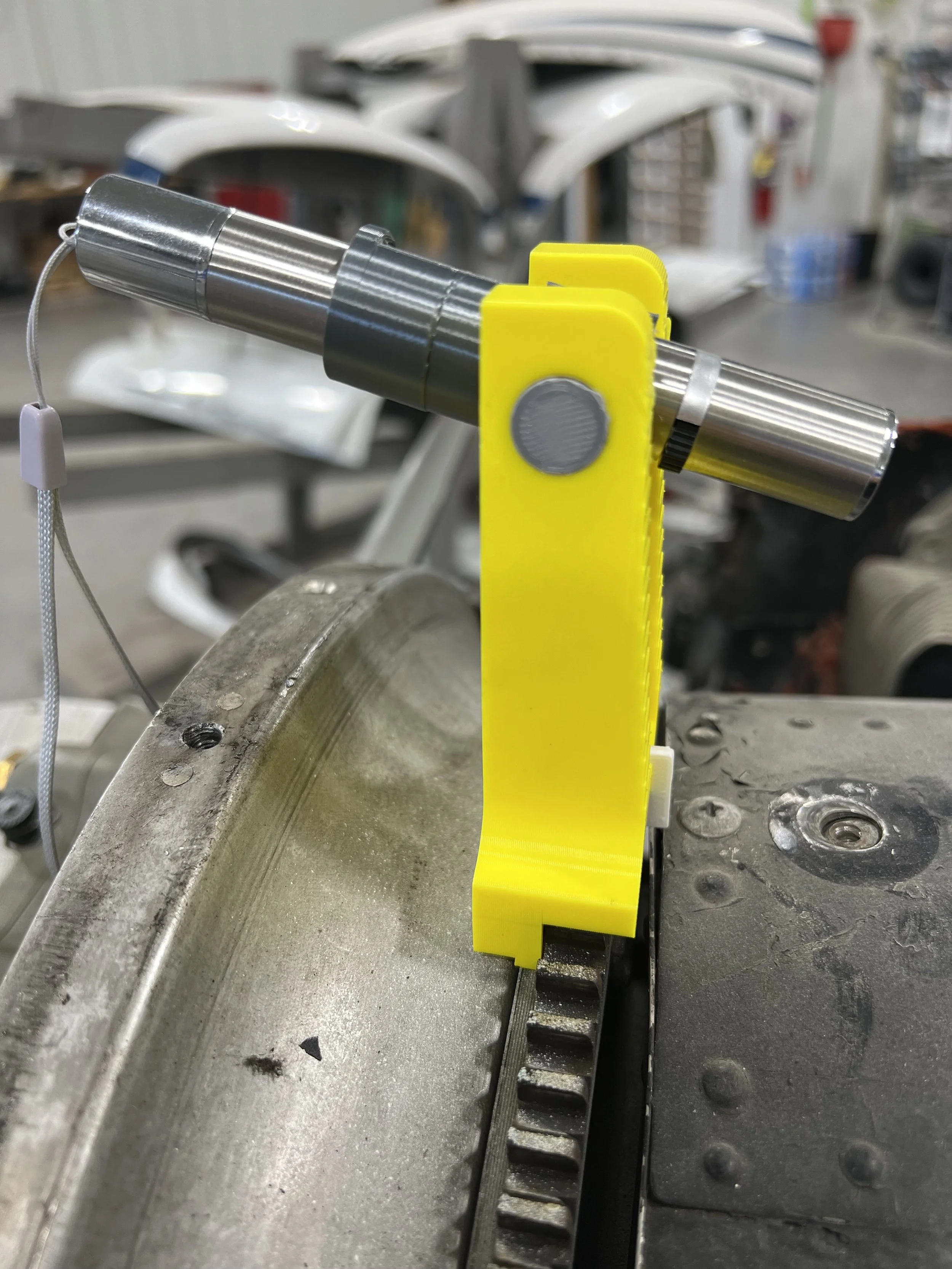

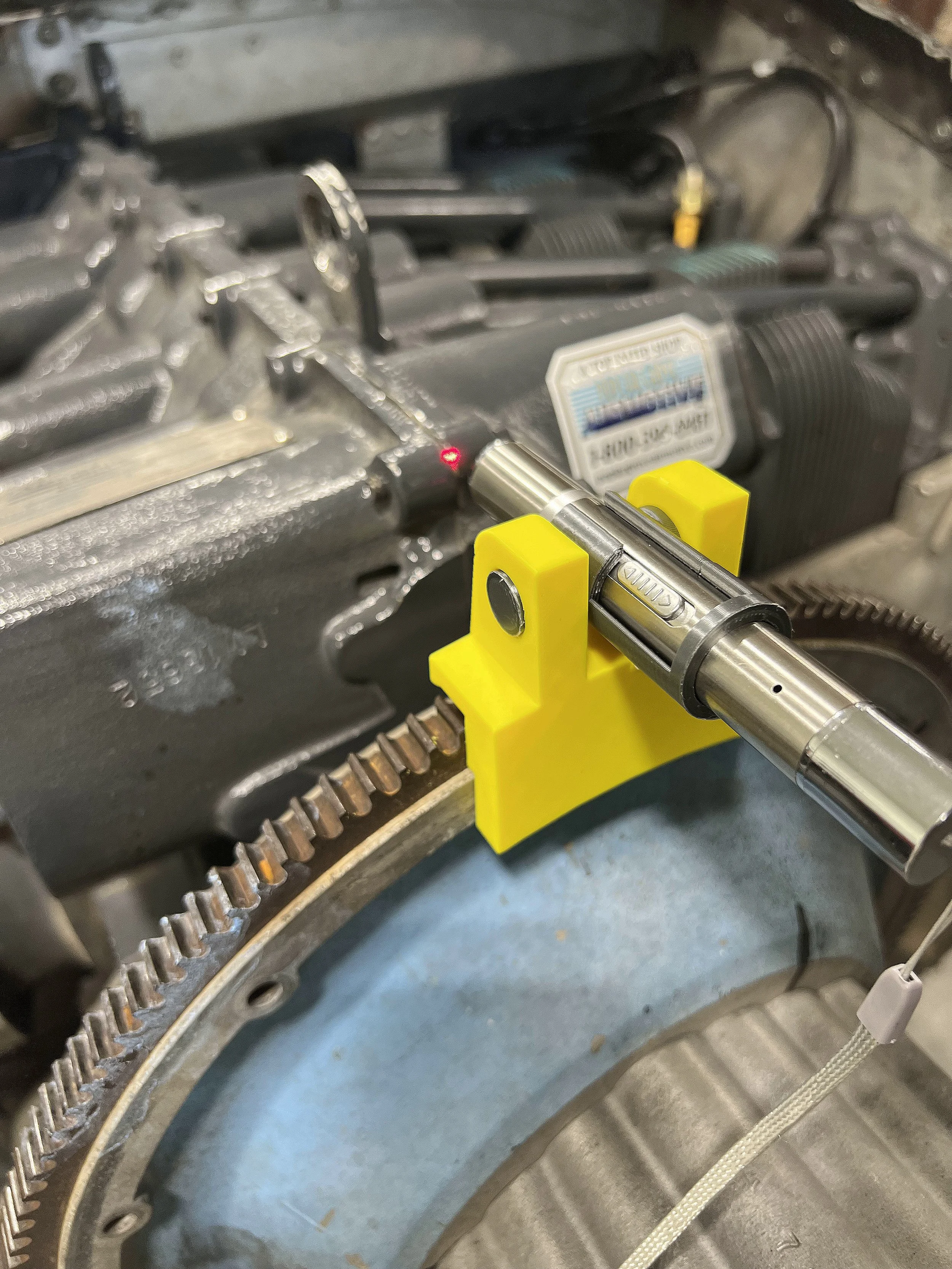

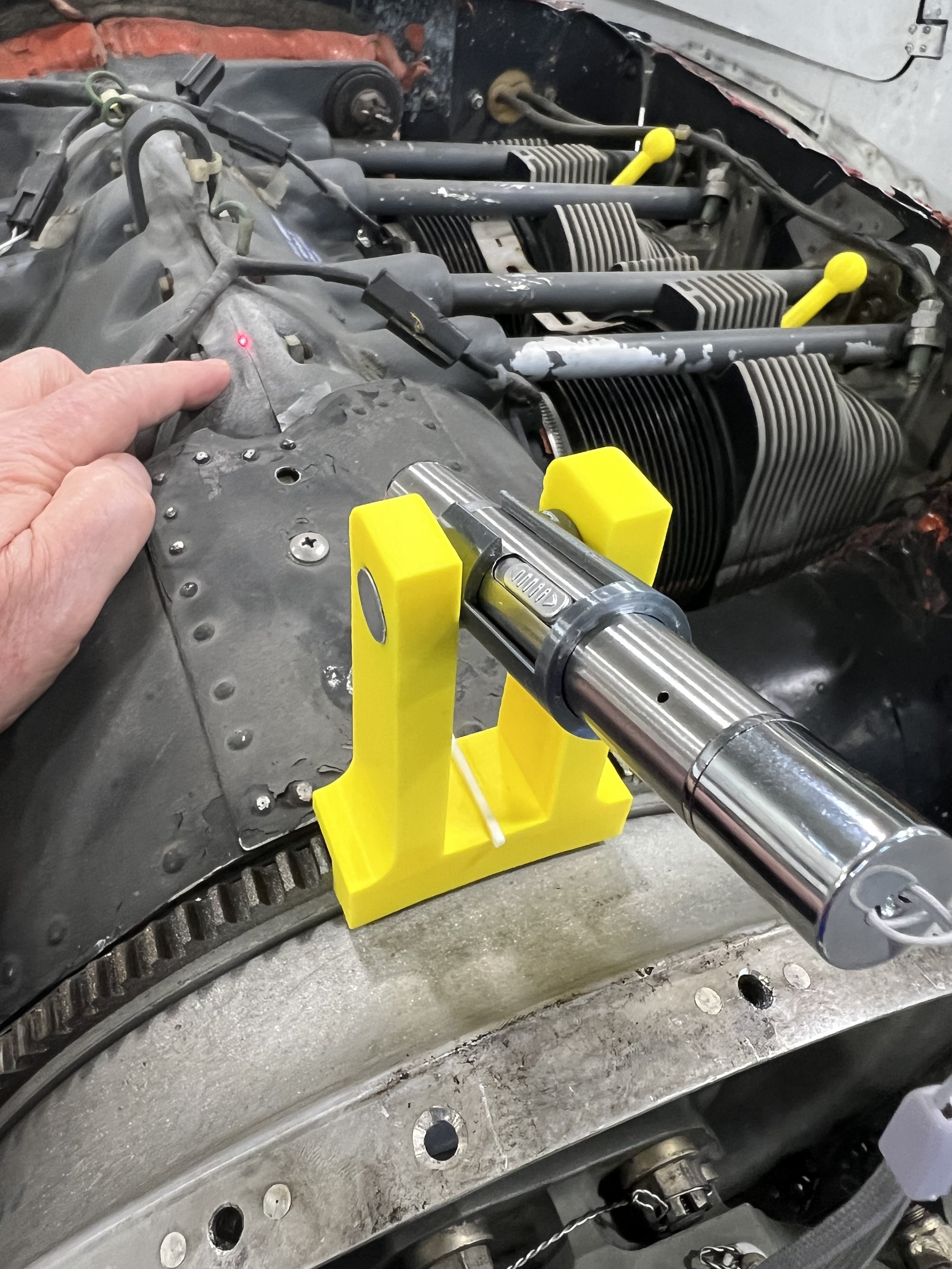

Shown within the pictures is the "Projector" touching the 25 degree BTDC mark on the starter ring and its alignment “red dot” projection to the engine case CL of a Lycoming O-320. The tool is also a means to time E-Mag installations timed to TDC or slightly after, on either a compression or exhaust stoke for any cylinder. Secondly, aircraft oil is naturally fluorescent in long-wave ultraviolet light (UV-A), making even the smallest amount of oil easy to spot. In addition to the laser projector, the unit also contains a UV flashlight and a normal white flashlight.

FEATURES

• LASER PROJECTOR

  • Aluminum alloy body shell.

  • Class I Laser, Max Output <0.35mW, Wavelength 532nm+/- 10

  • Three light modes, Red Dot Laser, White & UV-A Flashlight.

  • Three position slider switch.

  • USB Re-chargeable Lithium Ion Battery. (No need to buy batteries or charging cable)

  • Charging indicator

  • Carrying Lanyard

  • Laser Body Dimensions: 0.6 in. Dia, 4.5 in.overall length

• STARTER RING Structure

  • Three Configurations to choose from:

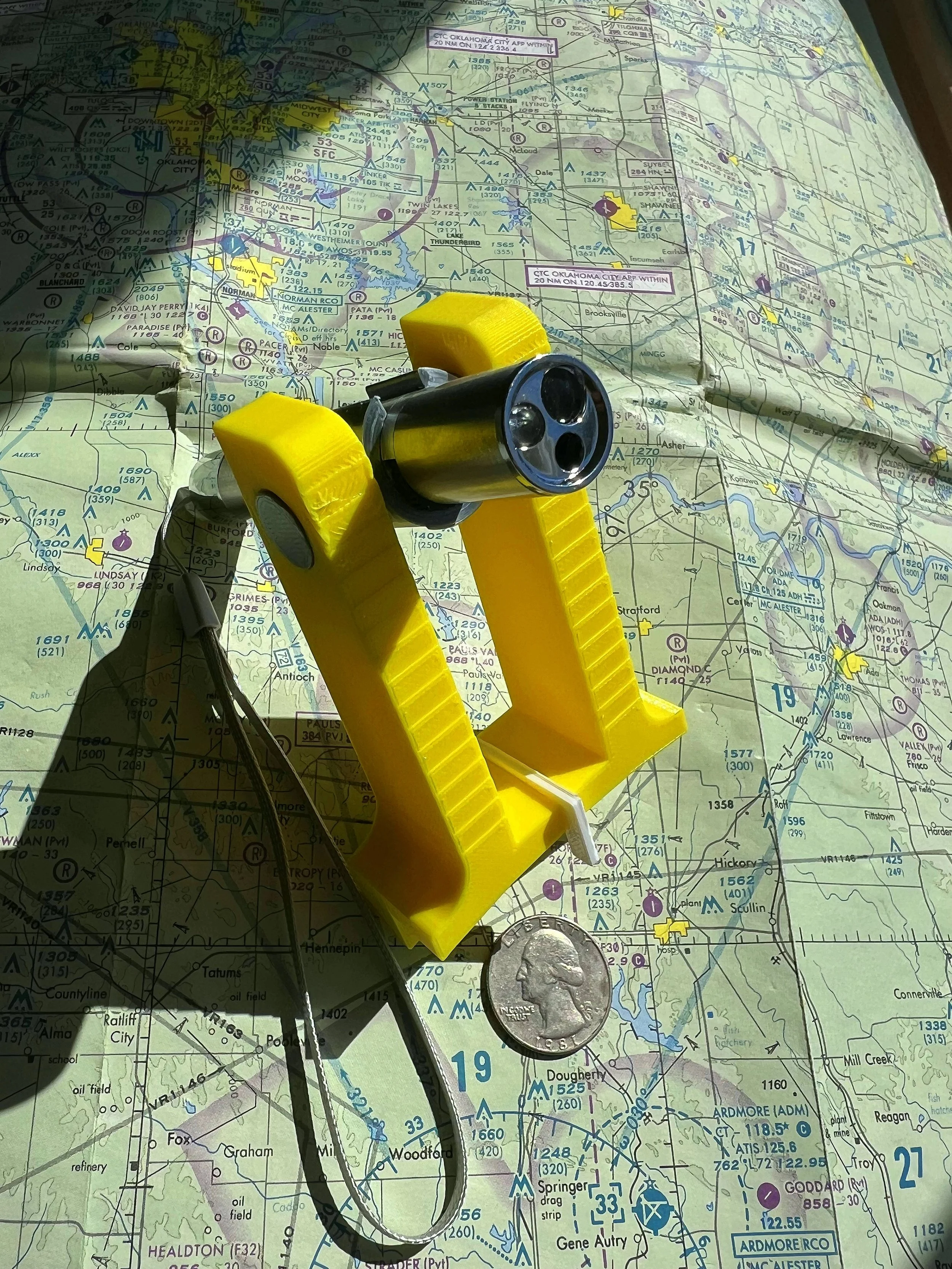

  • “Short”: Dimensions: 2.5 in. width, laser 1.4 in. height above starter ring

  • “Baffle Tall”: Dimensions 2.5 in width, laser 2.78 in. height above starter ring, configured to clear fwd aluminum baffle with laser.

  • “Spinner Class”: Dimensions 2.5 in width, laser 2.78 in height above starter ring, configured to clear spinner structures attached to the fwd face of the starter ring, like on a Piper Axtec.

    • Material: 3D Printed thermoplastic with a temperature limitation of 83C (181F).

    • Strong Rare Earth Neodymium Magnet

    • Pivoting Laser Projector tube to allow calibration of Laser Projector to tool centerline (CL)

    • Two Sealed Ball Bearings for the pivot.

    • Laser Tube angle adjustment Plus/Minus 25 degrees (short), 360 degrees (baffle tall and spinner class)

    • The configuration allows fwd/aft movement of the 4 in. laser fwd/aft within its surrounding pivot tube.  Min Fwd Protrusion from starter ring face: 1.2 in. 2.5in displayed in photos.

    • Total Weight: 59 gm (Inclusive of Laser Projector)

    • Color: Hi-Vis Yellow with White Timing Mark Pointer

• Condition: Mint, ready to affix magnetically to the starter ring and project the “red dot” beam.

• A convenient, cost effective alternative to LYCOMING TOOL P/N 64697. No tail dagger “top hat” friction. No squinting parallax through the starter, no 9inch ruler to misalign.

• Terms and Conditions approval required prior to purchase.

• Laser Warning Note: Do not aim the laser or UV-A light at the eyes or face. (Avoid direct eye exposure.) Do not look into the aperture while the laser pointer is on or point the laser toward reflective objects. Do not modify the laser pointer or remove protective covers or housings.

• Non-Smoker Manufacturing Facility

If you have any questions about this product, please ask.
