Made by a pilot for pilots, the Cross Country Throttle Grip with FLAPS or COMMs/ICS is manufactured in the USA by Swearingen 3D works of Marion IA., packaged in the USA and distributed by the designer. Everything you order is prepared just for you, only after you order. Upon order, your configuration options are checked and incorporated, final assembly completed, and continuity checks performed to assure the value and performance I have designed for you.

The throttle grip consists of a 4.4 inch 3D printed universal throttle overlay, ergonomically shaped to comfortably rest within the left hand, incorporating palm and finger cutouts. It incorporates prominent inboard and outboard fences to prevent hand slippage off the throttle in a high G or inverted environment. The grip is sized to adequately clear the prop lever and handle, still retaining the throttle ergonomics of the original VANs deluxe RV8/8A three lever throttle or any throttle with a 1 inch diameter tube. The three position slider switch is contained within the inboard fence of the grip, and is activated by the pad of the left-hand thumb. For ergonomic purposes, the COMMs switch is oriented Fwd / AFT. The FLAPs switch is oriented UP/.DWN.

This is a throttle grip that provides an interface fit by slipping over your existing RV-8/8A deluxe three lever throttle or similar with a 1 inch diameter. It comes complete with a functionally tested and a wired three position switch of your choice. (RV-8 Deluxe Throttle quadrant shown in pictures, not included in sale)

FEATURES

• Grip Size: 4.24 in width, 3.1 in length, 2.6 in thickness.

• Compatible with 1.0 Inch circular control stick tube. Internal Throttle stop at 2.5 in to prevent intrusion into the electronics.

• Weight: 3.1 oz.

• The "Cross Country" control grip, made from tough ecologically friendly, 3D printer PLA, is sculptured to fit the left hand and contains an inboard and outboard slip guard slip guard.

• Anti-Rotation Cutout embodied within the outboard portion of the overlay to prevent rotation of the grip on the stock throttle body.

• Throttle Stake added to allow mechanical fastening of overlay to throttle structure to prevent inboard overlay movement on internal throttle structure. Mechanical fastener is provided.

•  Throttle Grip contains a multiple switch logic slider switch with optional hat configurations, rated as follows:

        Voltage Rating: 12Vdc

           Current Rating: 10A DC (The wire bundle is limited to 5A)

       Switch Type: SPDT - ON-OFF-(ON) (ON)=Momentary

          Tested Life: 10,000 cycles

           Temperature Rating: -20C to 80C

OTHER switch logic options for incorporation are ON-NONE-ON,

ON-OFF-ON,

(ON)-OFF-(ON), . Use the contact page to discuss with us, your option.

Slider switch mounted within inboard fence of the grip, wired, and provided with 20 inches of 22AWG, Shielded TEFZEL, three, up to four conductor, functionally tested wire harness.

• Color System Schematic and instructions included for your cockpit installation.

• Condition: Mint, ready to plug and play.

• Terms and Conditions approval required prior to purchase

• Non-Smoker Manufacturing Facility

• Combined Shipping for more than one throttle grip.

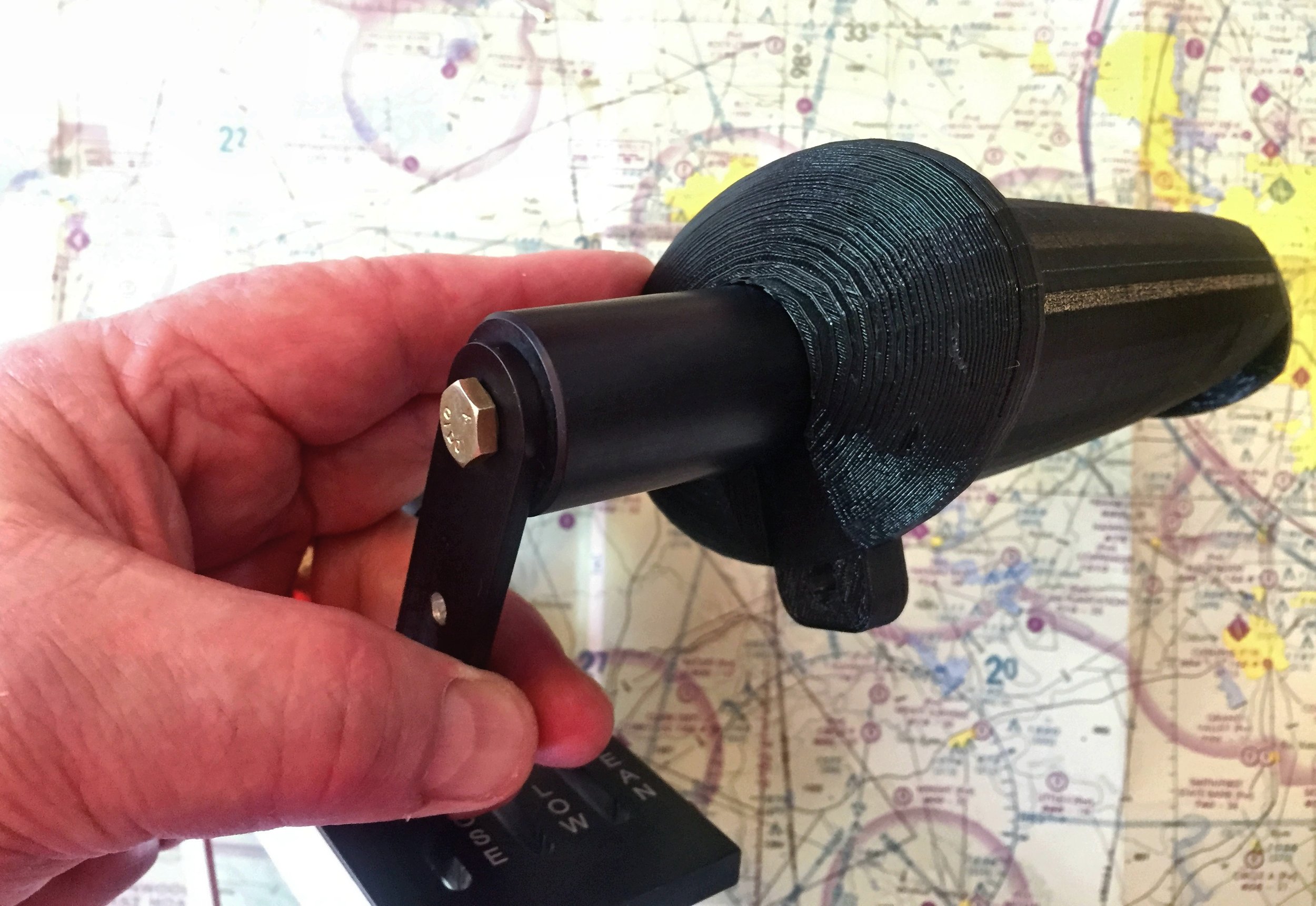

Shown within the pictures is the Throttle Grip installed on the VANs Deluxe RV-8/8A throttle quadrant. This sale is for the throttle grip and electronics only and is not sold with the throttle quadrant.

If a Right Hand grip is required, the same configuration can be arranged at the same price via the contact page.

If you have any questions about this product, please ask.
