Made by a pilot for pilots, the “Boeing 777 Jet Set” consists of a power lever with your selection of a TO/GA or PTT, ………..AND……………, the PROP “777 reverse lever”. Both are manufactured in the USA by Swearingen 3D works of Marion IA., packaged in the USA and distributed by the designer. Everything you order is prepared just for you, only after you order. Upon order, your configuration options are checked and incorporated, final assembly completed, and continuity checks performed to assure the value and performance I have designed for you.

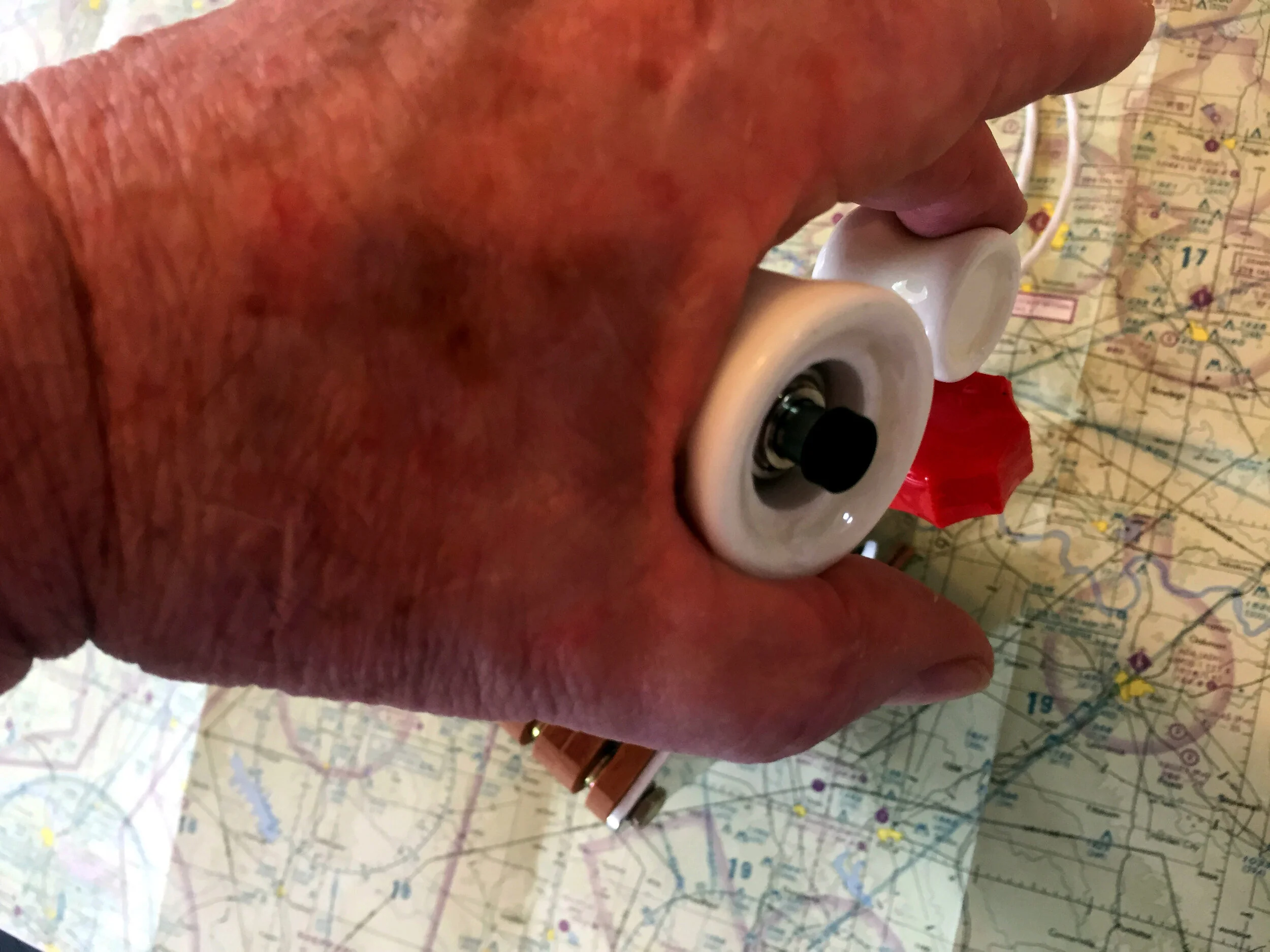

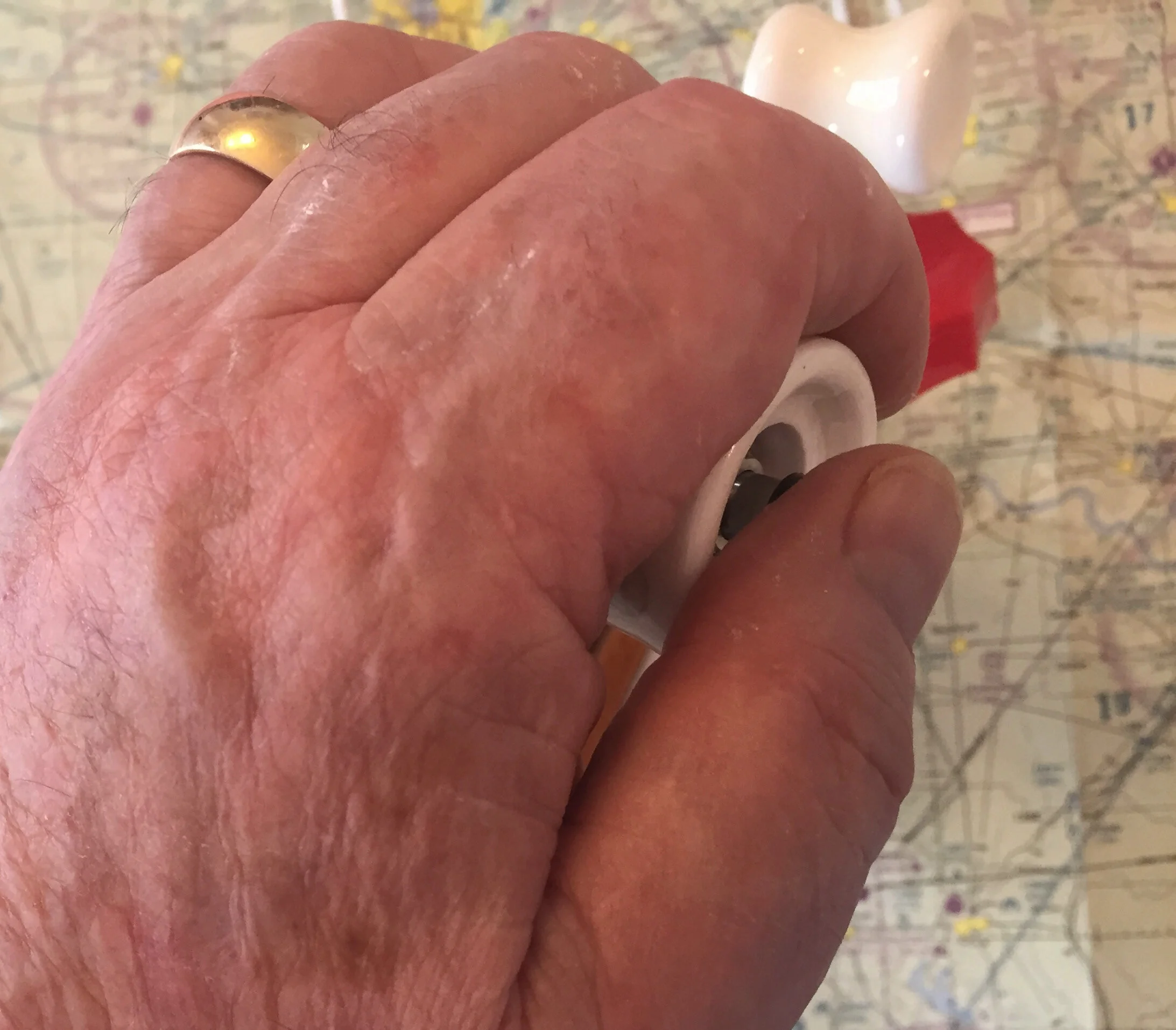

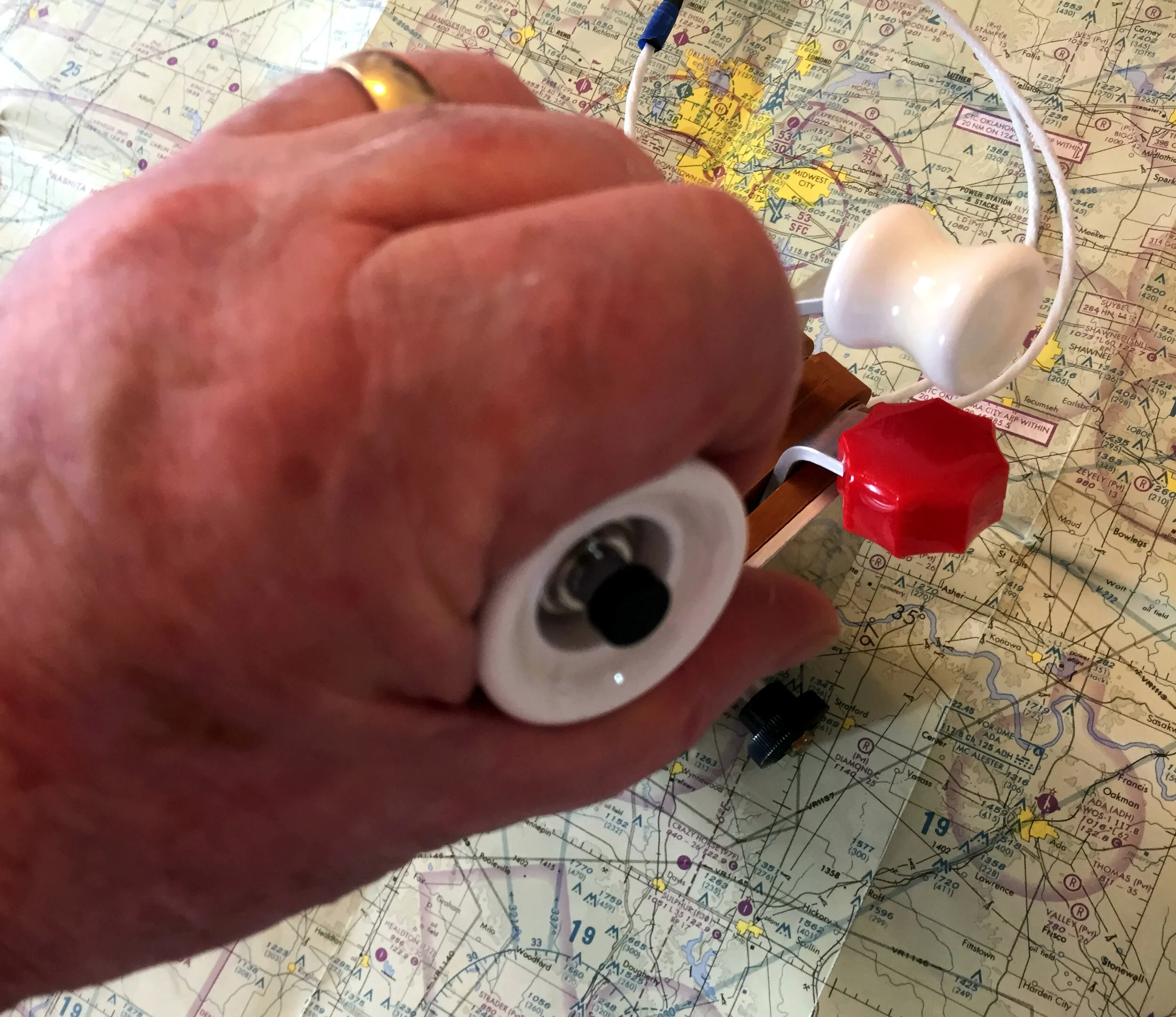

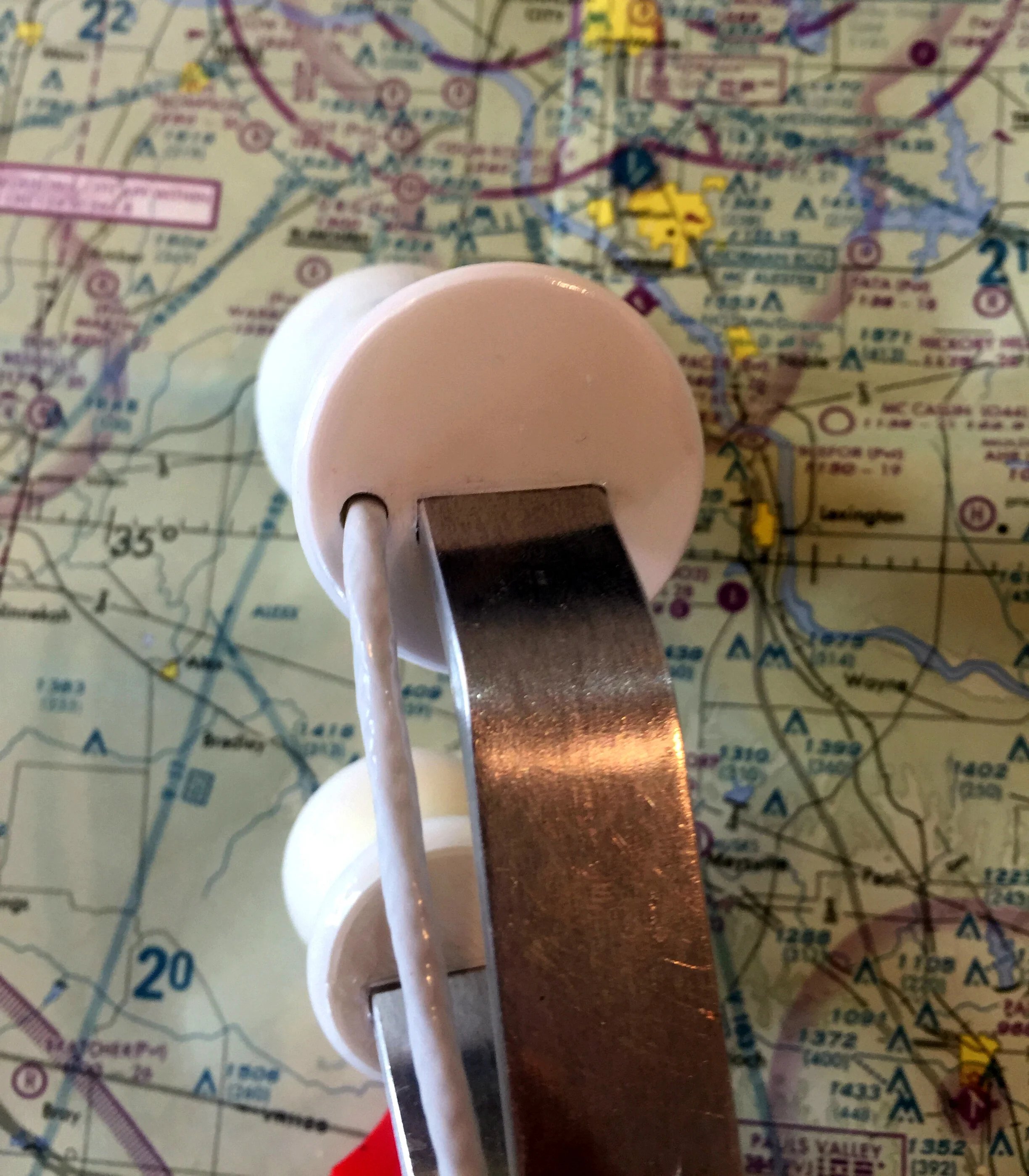

The power lever grip consists of a 2.2 inch 3D printed Boeing 777 power lever (PL), scaled from Boeing engineering plans. In conjunction with the “reverse lever (RL)”, both have been made compatible with the VANs RV-3, -4, and -8 /8A throttle quadrants CT-42F, CT-43F and CT- 82F, 83F and 81R (as pictured). The “power lever” is sized to adequately clear the “reverse lever” while still retaining the throttle ergonomics of the original VANs throttle quadrant. The TO/GA switch is contained within the PL, and is operated by the pad of the left-hand thumb.

This is a “jet set combo” that provides a remove and replace option to your CT series of VANs throttle quadrant ball grip of throttle and prop control. It comes complete with a functionally tested and wired switches of your selection. (RV-4 CT-43F Throttle quadrant shown in pictures, not included in sale).

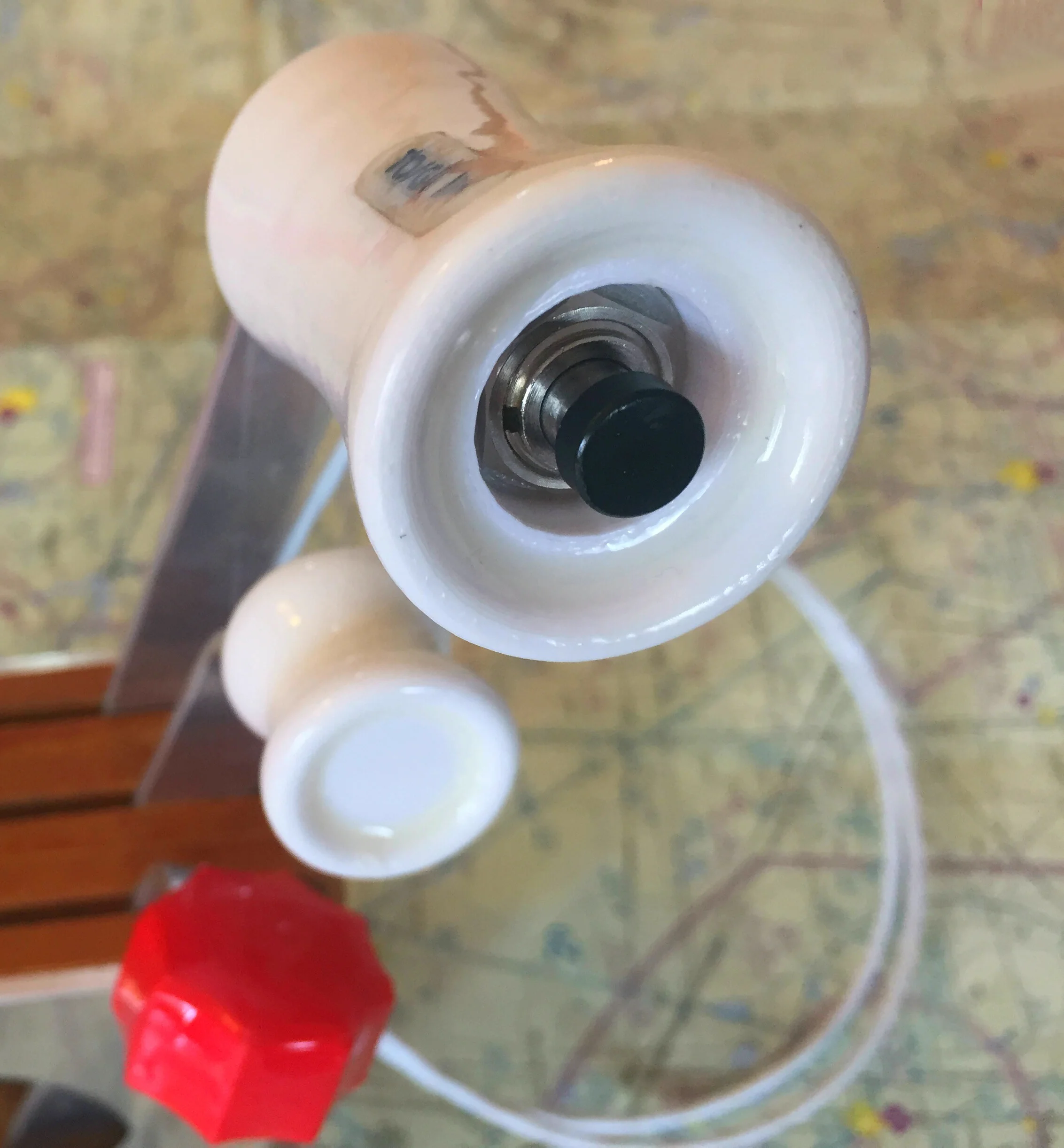

The PL and RL are sold as the “JET Set”, with your selection of a TO/GA switch or PTT switch. Shown in the first picture is the prototype with the “777” engine 1 insert. The throttle is now available with the TO/GA or PTT insert The red mixture knob is sold separately within the SHOP area of this website.

FEATURES

• Boeing “POWER LEVER”

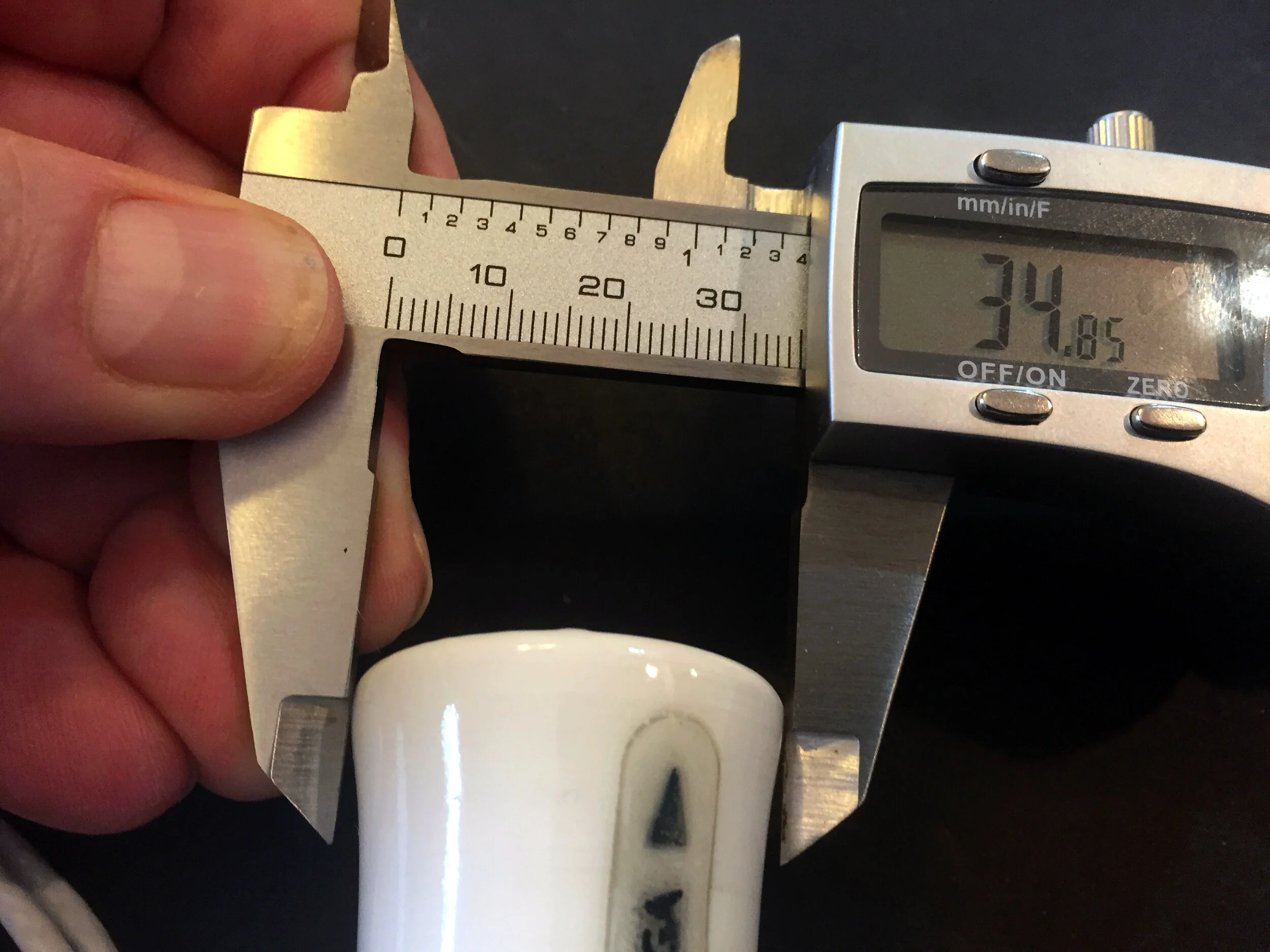

  • Size: 2.4 in width, 1.3 in. Diameter

  • Compatible with 0.61 Inch width throttle quadrant levers.

  • Weight: 43.9 g.

  • The "Boeing 777" power lever is made from tough , heat durable, White PETG.

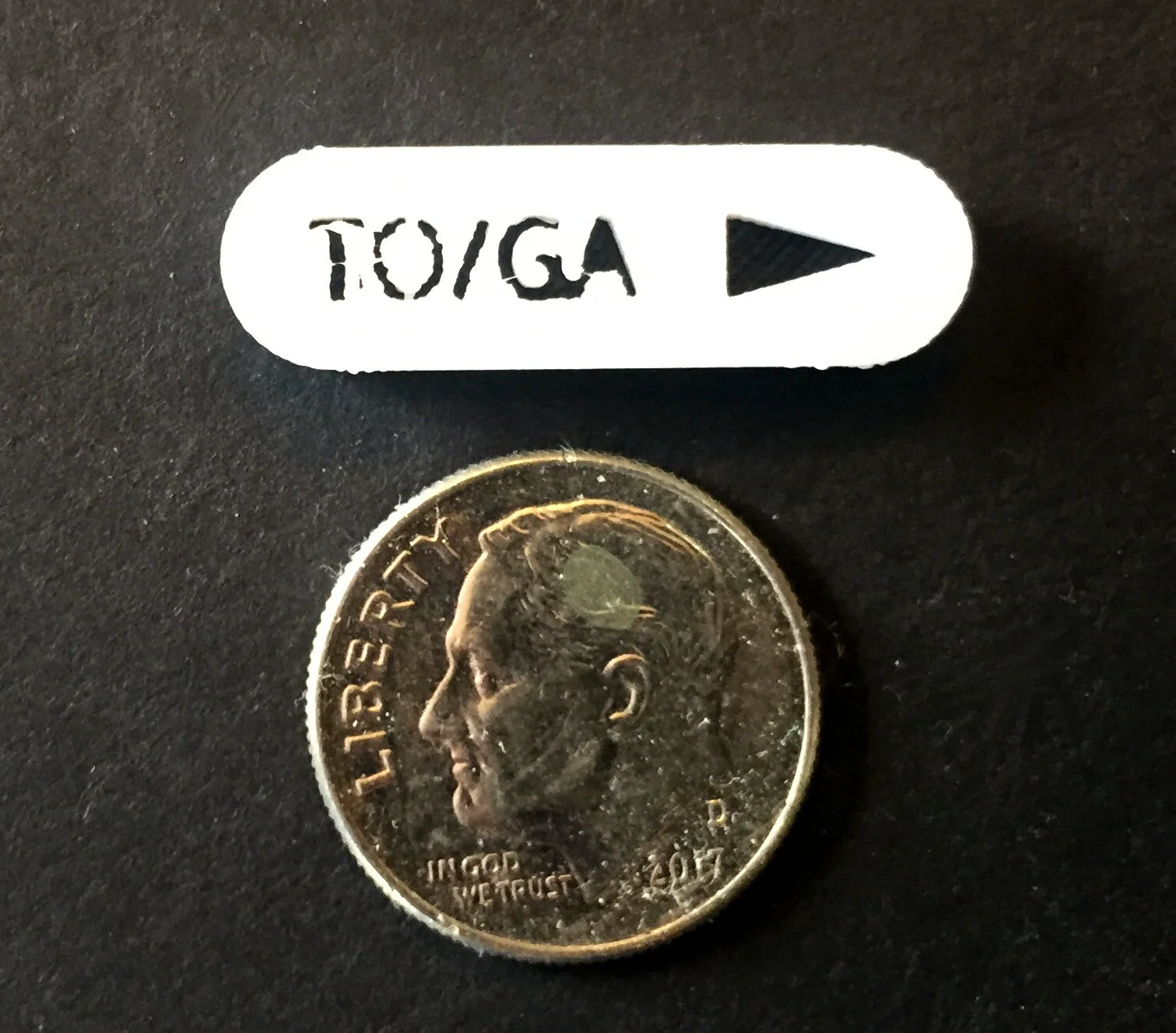

  • The ‘TO/GA” insert is printed in black with white lettering, embedded within PL, and is visible from the pilot eyepoint

  • Per your selection, the PL contains either of two switches, a “TO/GA” switch or a “PTT’ switch rated as follows:

    • TO/GA Switch

Voltage Rating: 12Vdc

Current Rating: 8A

Switch Type: DPDT -  Off-MOM (On)

Tested Life: 10,000 cycles

 Temperature Rating: -20C to 80C

Switch cap comes standard in black with a “GLOW” switch surround..

The switch is mounted within the PL, wired and provided with 20 inches of 22 AWG, Shielded TEFZEL, three conductor, functionally tested wire harness.

• PTT Switch

  Voltage Rating: 12Vdc

           Current Rating: 5A

       Switch Type: SPST - NO,  Off-MOM On

          Tested Life: 10,000 cycles

           Temperature Rating: -20C to 80C

 PTT cover comes standard in silver with a “GLOW” switch surround.

The switch is mounted within the PL, wired and provided with 20 inches of 22 AWG, Shielded TEFZEL, two conductor, functionally tested wire harness.

• Boeing “REVERSE LEVER” Size: 1.04 in width, 1.02 in. Diameter

• Compatible with 0.61 Inch width throttle quadrant levers.

• Weight: 6.6 g.

• The "Boeing 777" reverse lever is made from tough ecologically friendly, 3D printer White PLA.

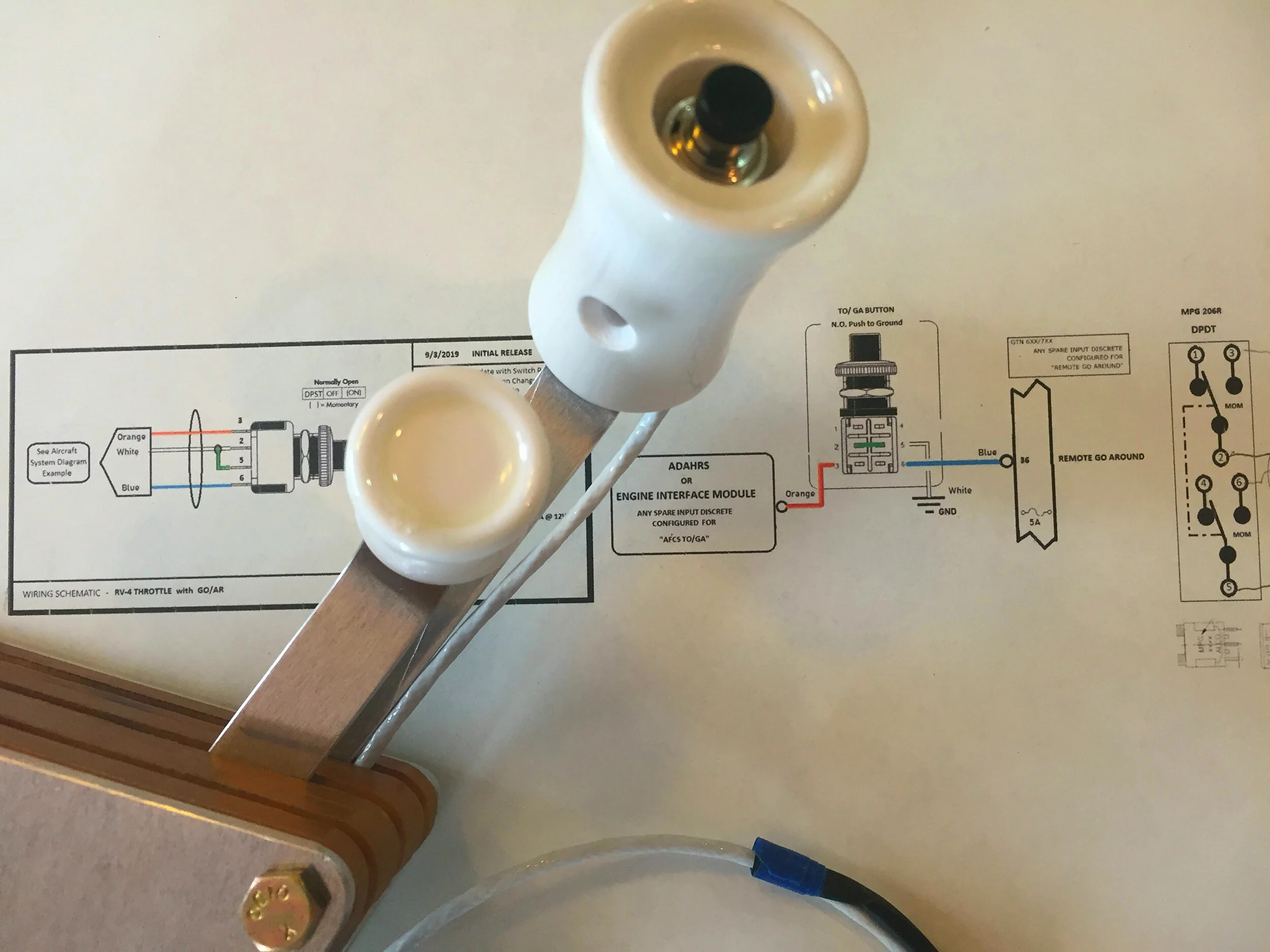

• Color schematic and instructions included for your cockpit installation.

• Condition: Mint, ready to plug and play.

• Terms and Conditions approval required prior to purchase

• Non-Smoker Manufacturing Facility

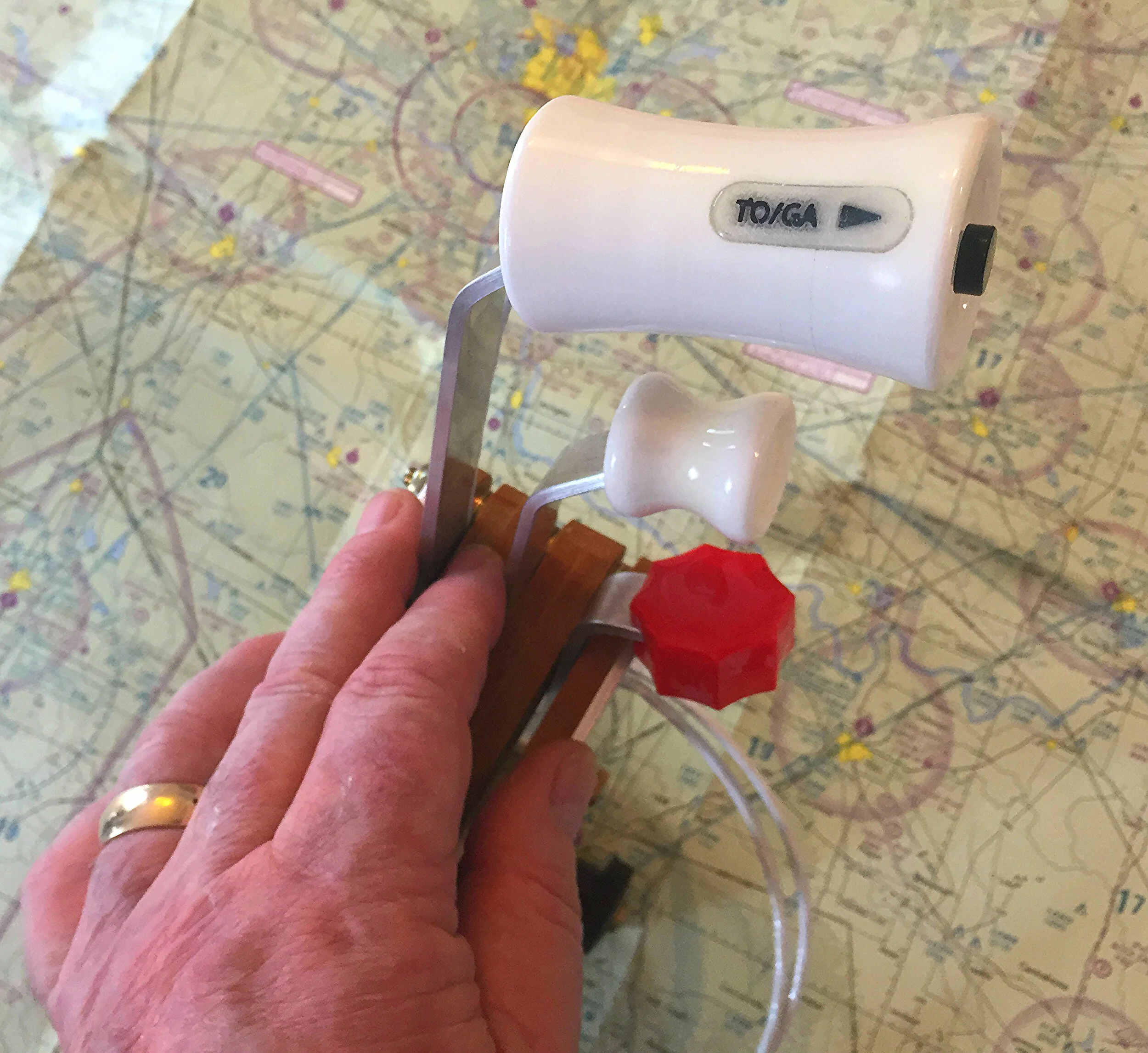

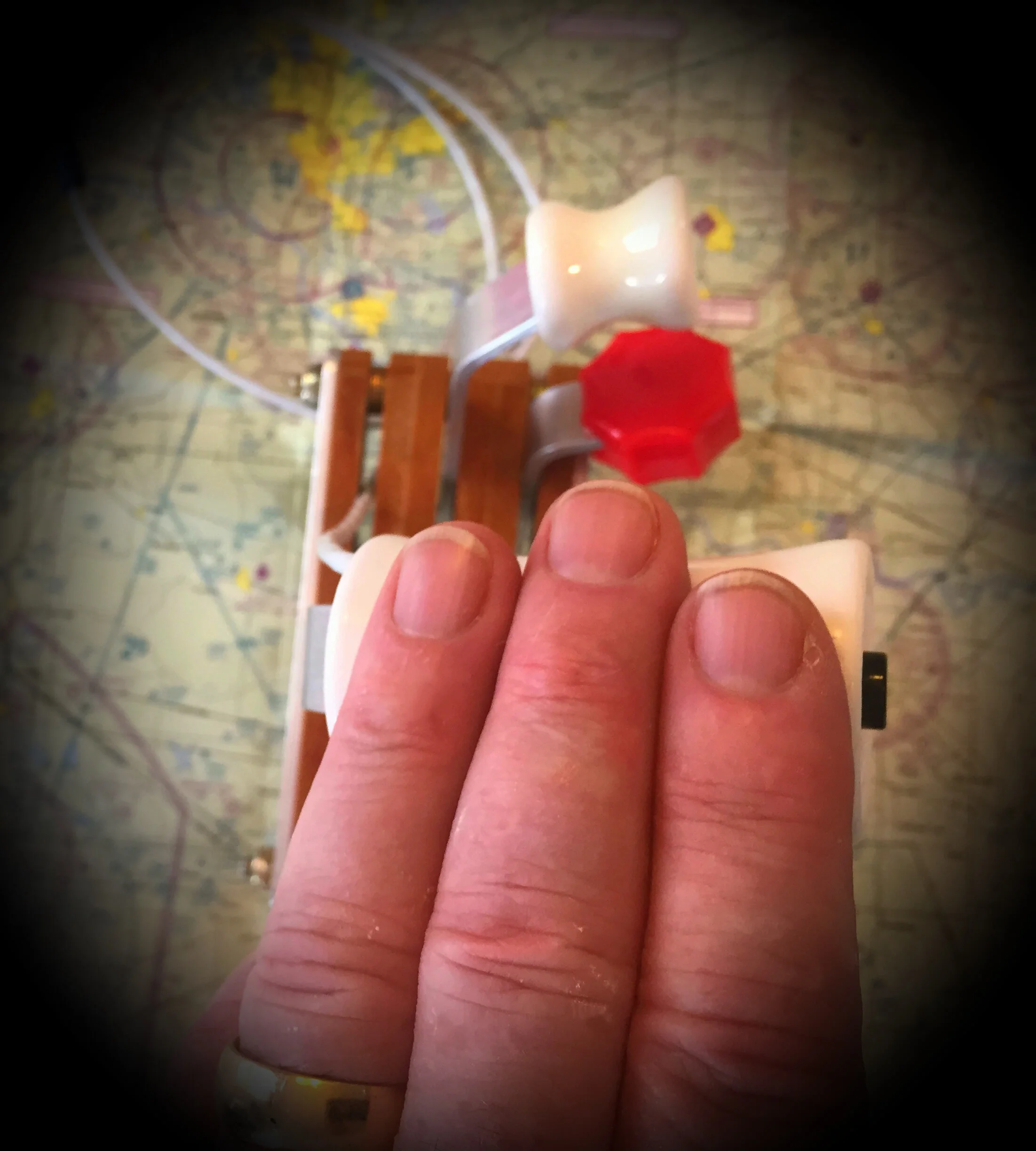

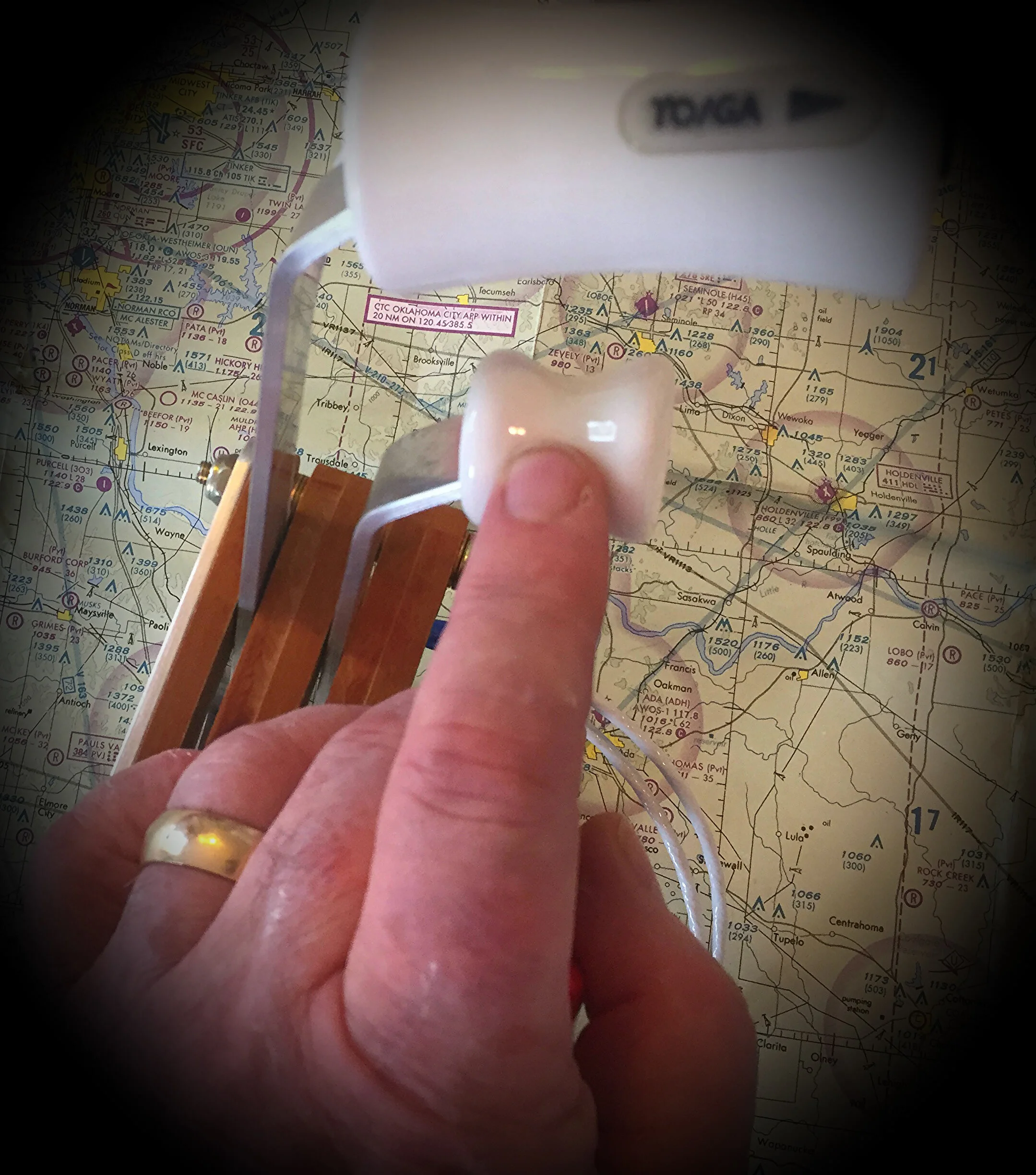

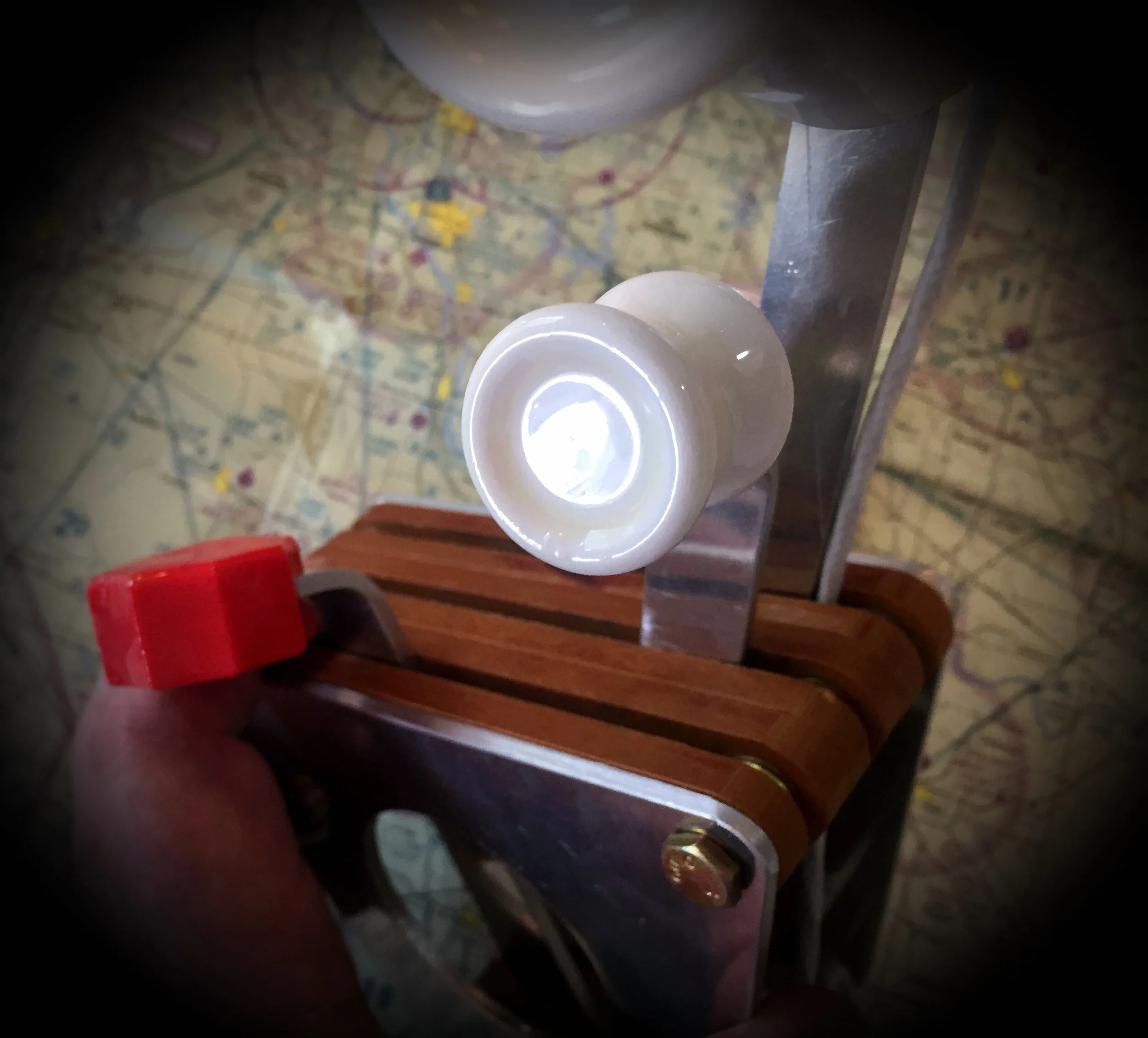

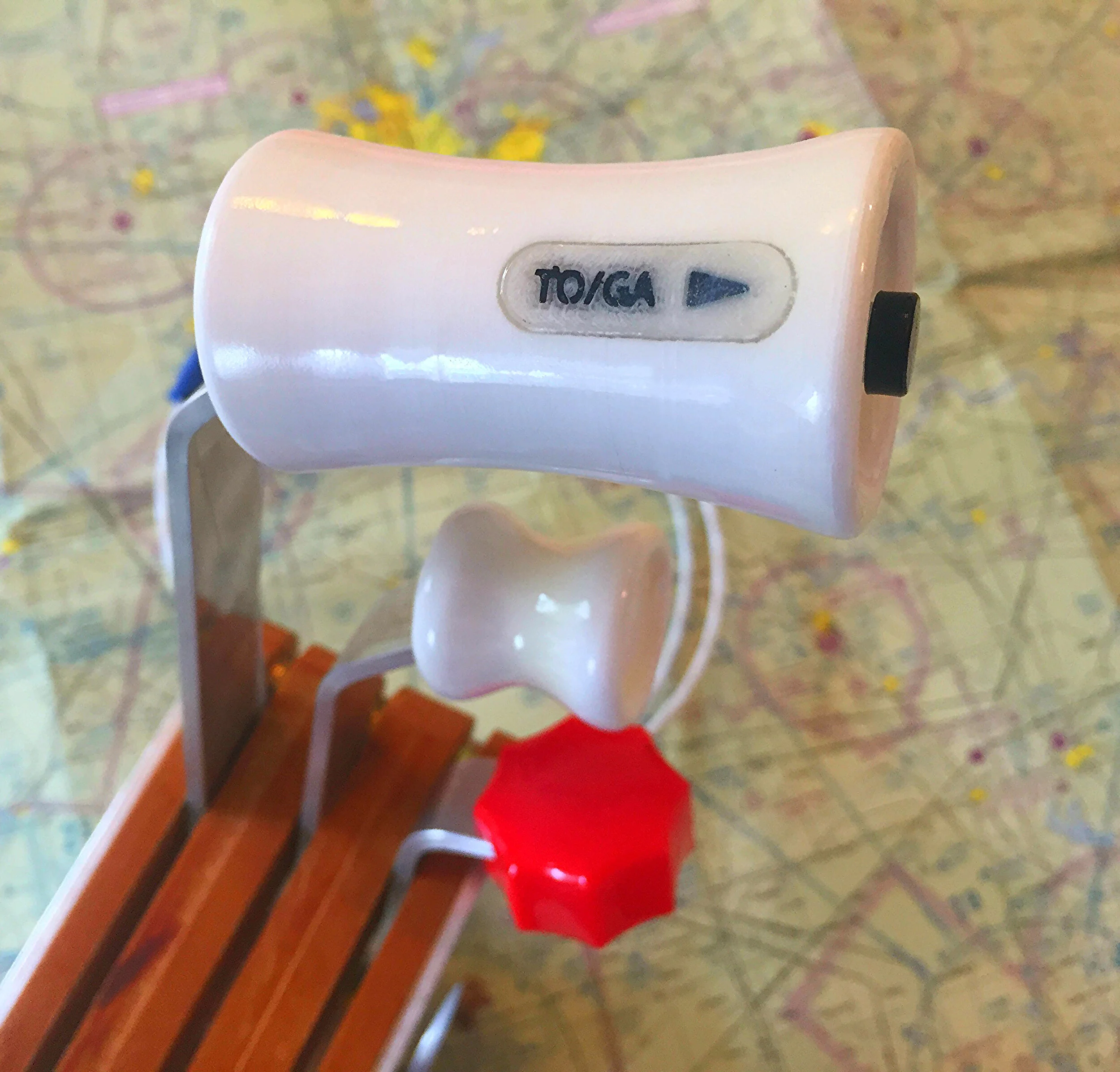

Shown within the pictures is the “JET SET” combo installed on the VANs RV-4 CT-43F throttle quadrant. This sale is for the “JET set”’ and electronics only and is not sold with the throttle quadrant or the red Mixture Knob. The “JET SET” PL and RL are sold as a combo. The Mixture knob can be purchased separately.

If a Right Hand “reverse image” power lever is required, the same configuration can be arranged at the same price via the contact page.

If you have any questions about this product, please ask.
