Made by a pilot for pilots, the “CONFORMAL RH THROTTLE” consists of a throttle grip with a SMOKE LED rocker switch. The grip is manufactured in the USA by Swearingen 3D works of Marion IA., packaged in the USA and distributed by the designer. Everything you order is prepared just for you, only after you order. Upon order, your configuration options are checked and incorporated, final assembly completed, and continuity checks performed to assure the value and performance I have designed for you.

The throttle grip consists of a 4.3 inch 3D printed “CONFORMAL RH THROTTLE” grip, made to slide over the existing throttle tube of the VANs RV-8 /8A throttle quadrants CT- 82F, and 83F (as pictured). The throttle adequately clears the existing PROP knob of a three lever quadrant and still retains the throttle ergonomics of the original VANs throttle quadrant.

It comes complete with functionally tested and wired SMOKE switch and is operated by the pad of the right-hand thumb.

The “CONFORMAL RH Throttle” comes finished in cured urethane coatint with a military black flat finish. (RV-8 CT-43F Throttle quadrant shown in pictures, not included in sale).

FEATURES

• “CONFORMAL THROTTLE GRIP”

  • Size: 4.17 in width, 1.96 x 1.22 in. Oval Diameter

  • Compatible with the 2.5 in x 1 in throttle tube of VANS CT- 82F, and 83F throttle quadrants.

  • Weight: 55 g.

  • The "CONFORMAL RH Throttle" is made from tough , heat durable, Black 3D printer PETG.

  • The Throttle overlay has an option for a cured urethane coating, finished in military flat. (shown in pictures are prototype non urethane coated articles)

  • Per your selection, the throttle grip contains a SMOKE rocker switch rated as follows:

• SMOKE Switch

  • Voltage Rating : 12Vdc

  • Current Rating 16A (The wire bundle is limited to 5A)

  • Switch Type: SPST - OFF-ON

  • Tested Life: 10,000 cycles

  • Temperature Rating: -20C to 80C

  • The switch LED, indicates that the switch has been moved SMOKE and that 12VDC is applied to the Smoke system pump.

  • SMOKE rocker switch orientation comes standard in a horizontal ON/AFT configuration. Switch orientation ON/FWD is also available as an option.

  • The switch is mounted within the grip, wired and provided with 20 inches of 22 AWG, Shielded TEFZEL, three conductor, functionally tested wire harness.

• Color schematic and instructions included for your cockpit installation.

• Condition: Mint, ready to plug and play.

• Terms and Conditions approval required prior to purchase

• Non-Smoker Manufacturing Facility

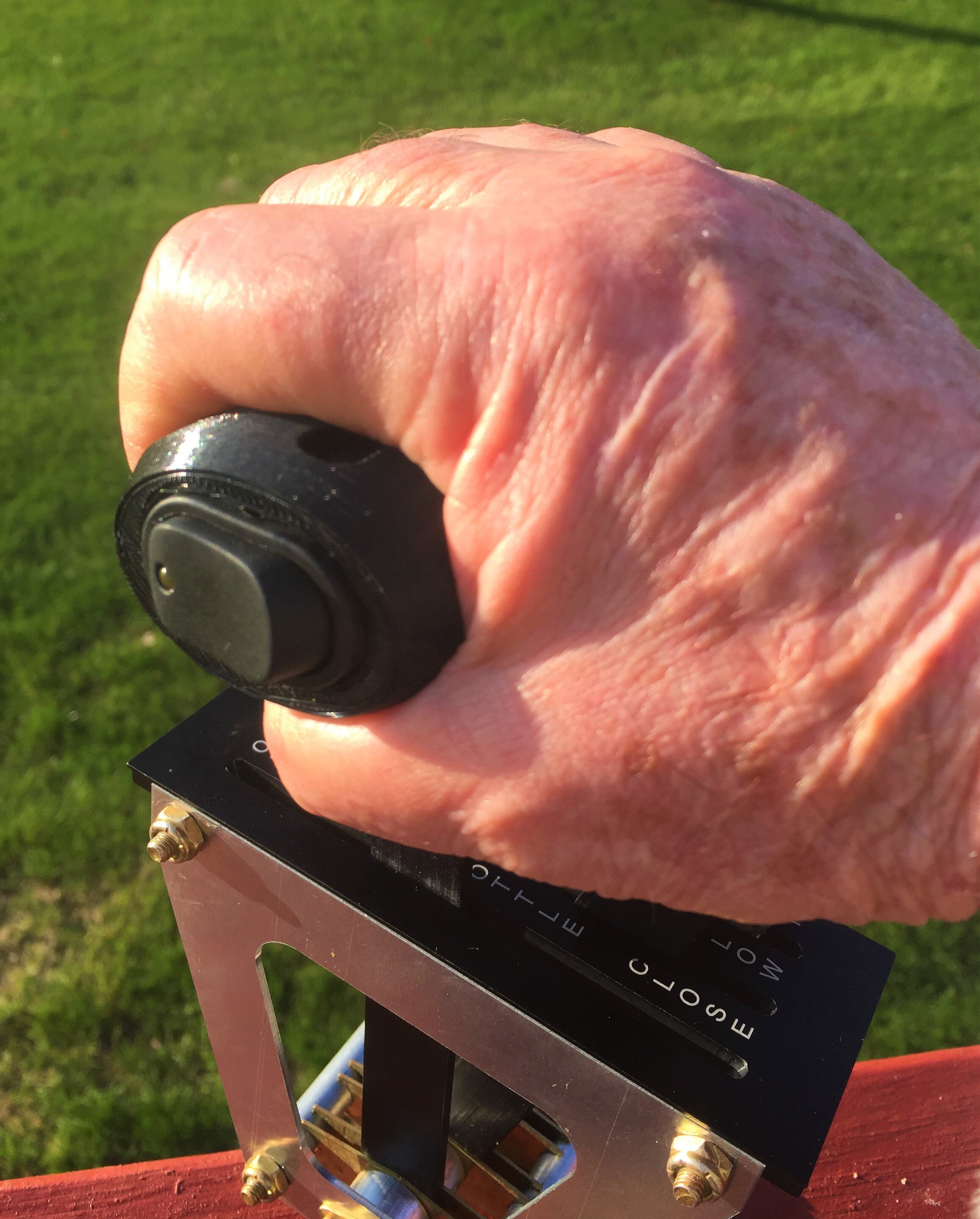

Shown within the pictures is the “CONFORMAL RH THROTTLE” installed on the VANs RV-8 CT-83F throttle quadrant. This sale is for the “CONFORMAL THROTTLE” and electronics only and is not sold with the throttle quadrant.

If you have any questions about this product, please ask via the CONTACT page.
